Airflow
470.9 cfm (800 m3/h)
Engine
Kawasaki FX600V, 603 cc
Filtration
4-stage, HEPA H13
Aspirador industrial a propano Lavina V32GE
$14,990.00
Preço sugerido pelo fabricante. Equipamentos vendidos por cotação.

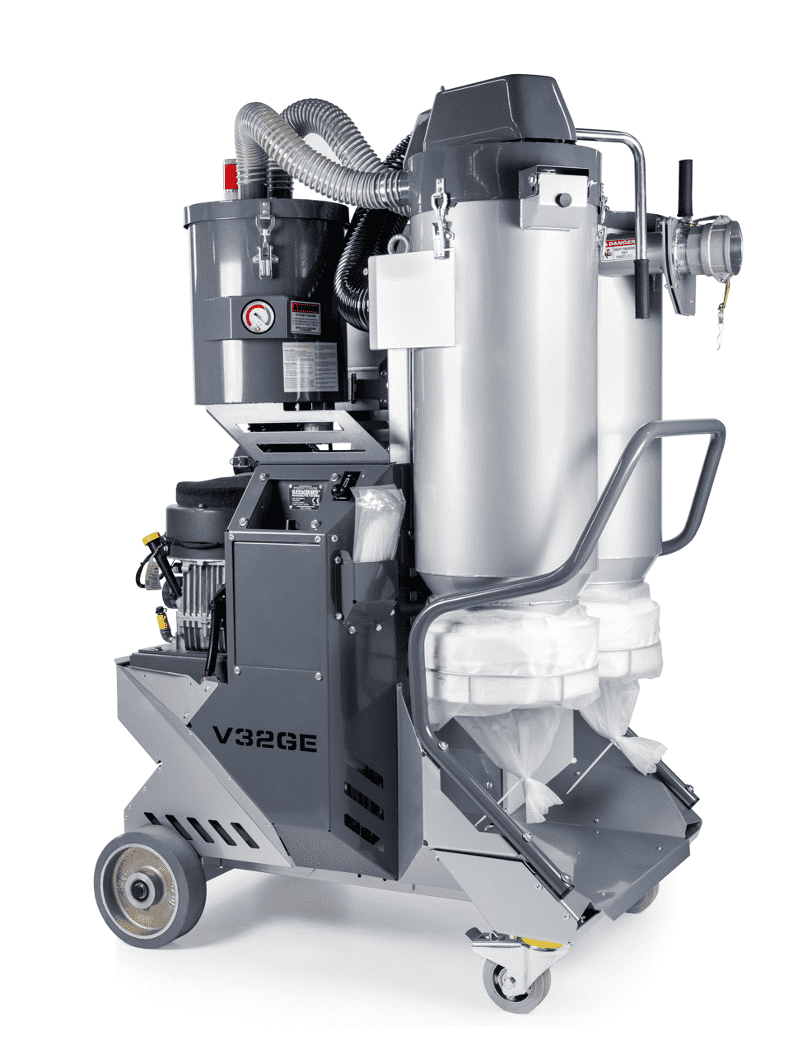

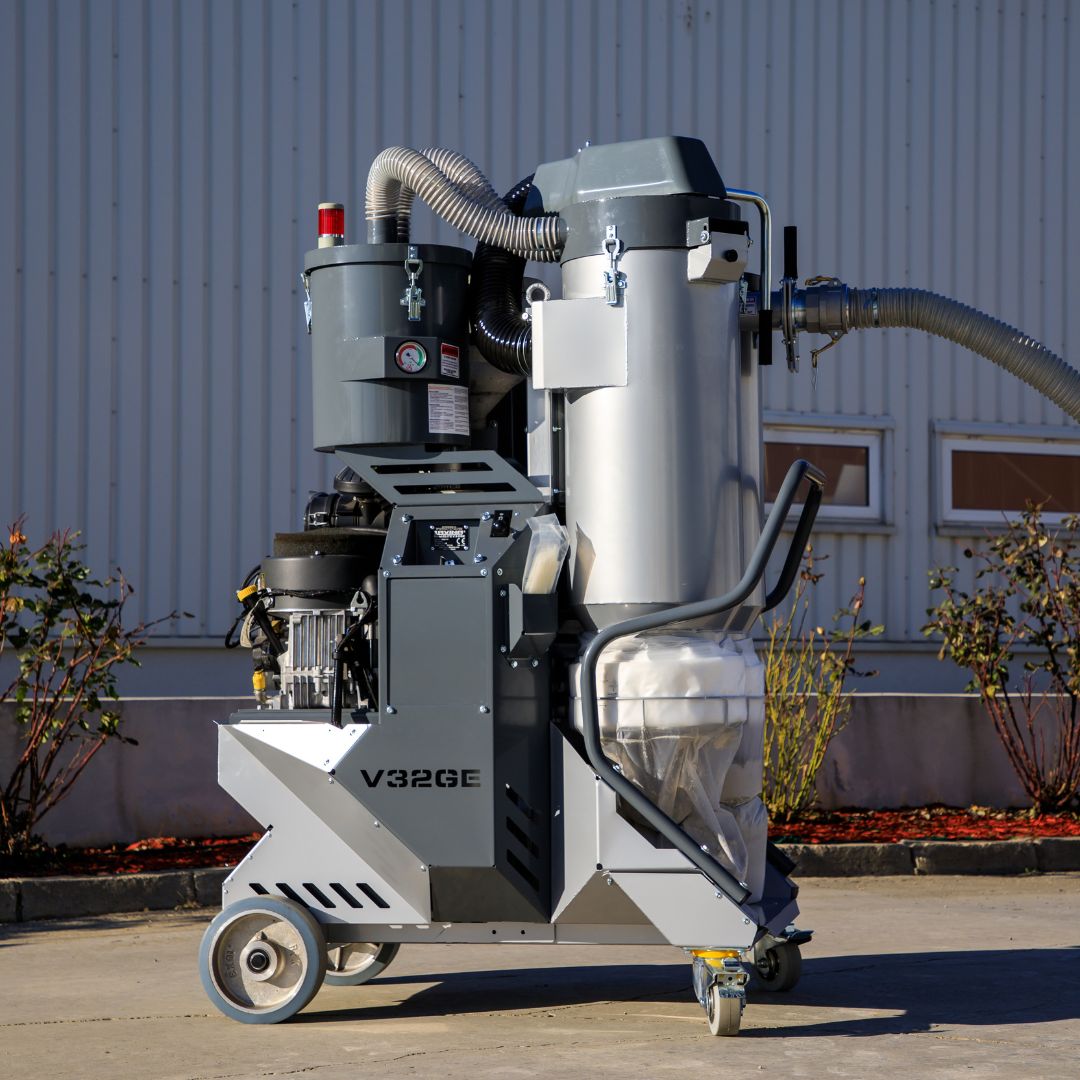

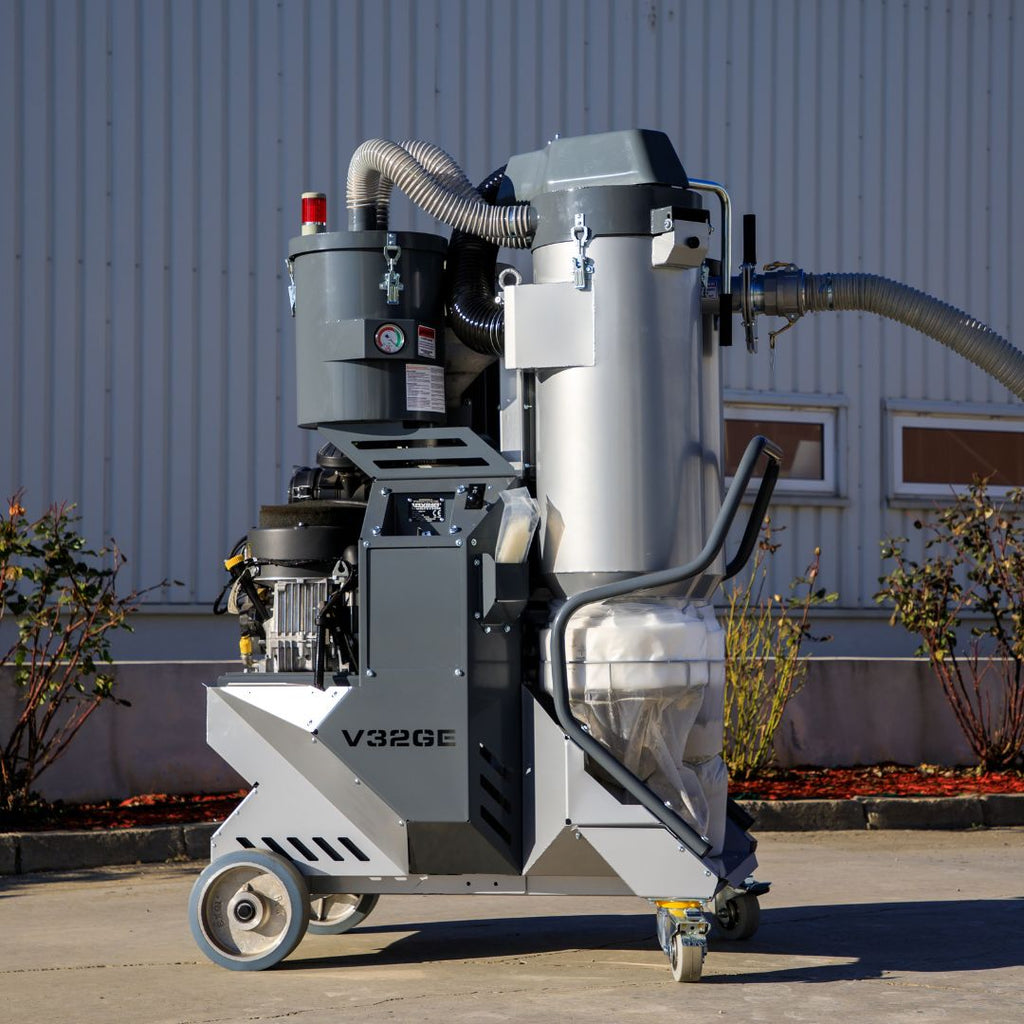

The Lavina V32GE is a propane-powered dust extractor sized to keep up with 32 inch concrete grinders, built around a four-stage collection train that pulls the load off the filters instead of choking them. It is the extractor you put behind a big propane grinder when the job has no power drop and the dust still has to stay out of the air.
470
CFM AIRFLOW
max, 800 m3/h
H13
HEPA FILTER
99.95% at 0.15 to 0.23 micron
4
STAGE COLLECTION
pre-separator to HEPA
730
LB WEIGHT
51 x 32 x 70 in
Four stages, so the filters stop doing all the work
Stage 1, integrated pre-separator
Large particles drop out before they ever reach the filter chamber. That is what keeps suction from falling off halfway through a pass.
Stage 2, cyclone chamber
A second cyclone spins around the conical filter and strips out the mid-sized particles the pre-separator lets through.
Stage 3, conical M class filter
53.8 square feet of conical media with high air permeability, so you run longer between cleaning intervals.
Stage 4, HEPA H13
The last line captures 99.95% of particles from 0.15 to 0.23 micron. Easy to reach when it is time to service it.
Longopac bagging
Continuous drop-down bagging with the newer, easier to mount holders. You tie off and cut instead of wrestling a full drum.
Filter warning lamp
An integrated lamp tells the operator when the filter needs cleaning, before suction drops off and the crew notices the hard way.
Technical specifications
| ENGINE | |
| Engine | Kawasaki FX600V, 603 cc, propane |
| FILTRATION | |
| Main filter | Conical M class, 53.8 sq ft, 5 m2 |
| HEPA filter | H13, 43 sq ft, 4 m2 |
| Collection stages | 4, pre-separator, cyclone, conical, HEPA |
| AIRFLOW | |
| Airflow, max | 470.9 cfm, 800 m3/h |
| Vacuum, max | 112.5 in water lift, 0.28 bar |
| HOSES | |
| Main hose | 3 in x 32 ft, 75 mm x 10 m |
| Wand hose | 2 in x 21.3 ft, 50 mm x 6.6 m |
| DIMENSIONS | |
| Dimensions | 51 x 32 x 70 in, 130 x 80 x 178 cm |
| Weight | 730 lb, 330 kg |
Works with
Built to pair with 32 inch propane grinders such as the Lavina 32 series, and it will keep up with 30 inch machines as well. Run it with Latux metal-bond and PCD tooling and the grinder, extractor, and tooling work as one system instead of three parts that almost match.
Options
An automatic filter cleaning version is available as the V32GEAFC, MSRP $16,990. Ask your rep if the crew is running long shifts and you would rather not stop to clean filters by hand.
Ordering
Latux sells the Lavina V32GE by quote so you get the best price, freight, and lead time for your job. Call or message your rep and we confirm current pricing and availability. MSRP is shown for reference.
Distributed and supported by Latux, an authorized channel for Lavina equipment.
Frequently Asked Questions
What size grinder does the V32GE keep up with?
It is built for 32 inch concrete grinders and will keep up with 30 inch machines as well. Airflow is 470.9 cfm with 112.5 inches of water lift.
What are the four collection stages?
An integrated pre-separator drops out large particles, a cyclone around the conical filter catches mid-sized particles, then a conical M class filter, then a HEPA H13 final stage.
How fine does the HEPA filter capture?
The H13 element captures 99.95% of particles from 0.15 to 0.23 micron, which is the fraction that matters for respirable silica dust.
Does it come with automatic filter cleaning?
The standard V32GE has manual filter cleaning with a warning lamp. Automatic filter cleaning is a separate model, the V32GEAFC, at $16,990 MSRP.
Why propane instead of electric?

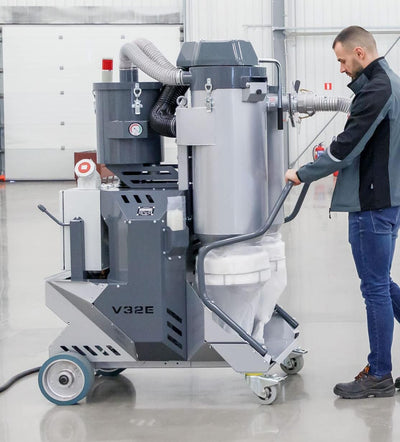

Propane runs where there is no three phase power drop. If the job is indoors or in an occupied building, look at the electric V32E instead.
How do I buy it, and what about freight?
The V32GE is sold by quote. Call or message your Latux rep for current price, freight, and lead time. The MSRP shown is for reference.
