DESCRIPTION

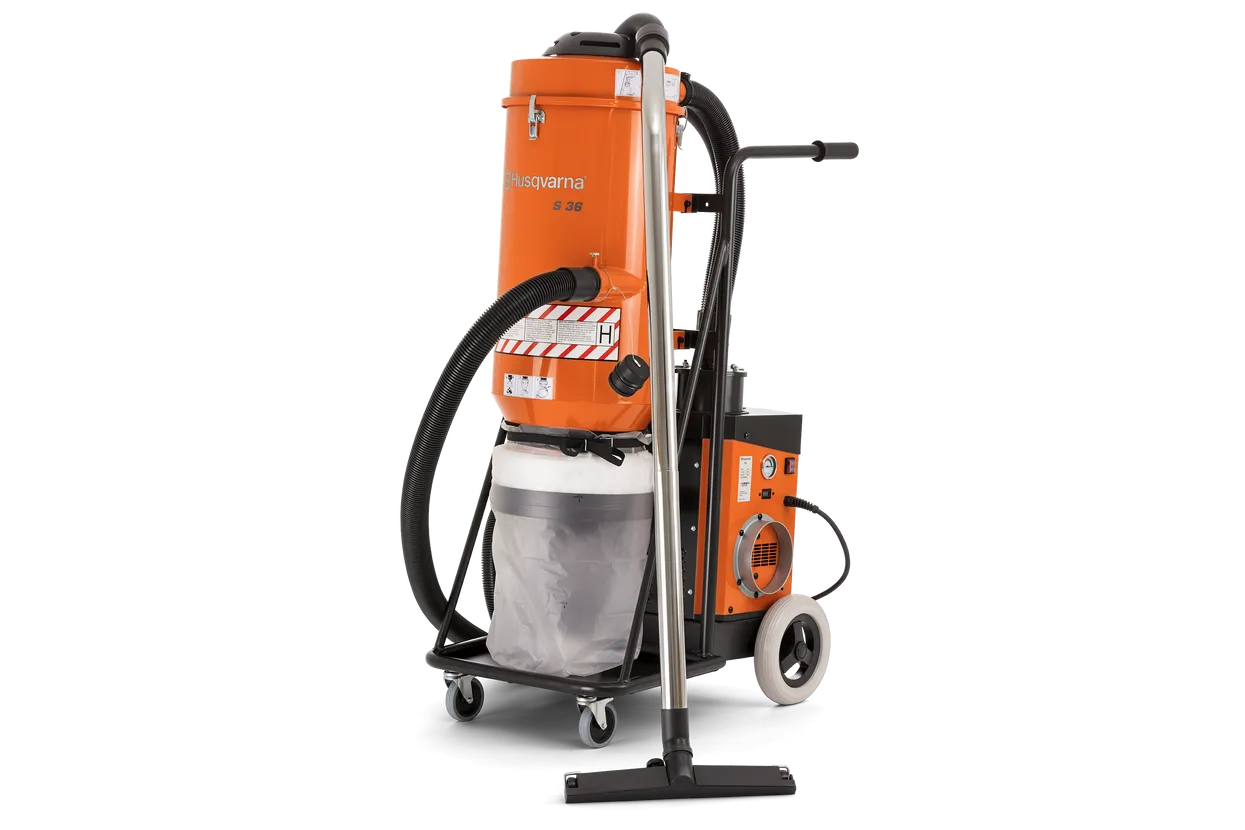

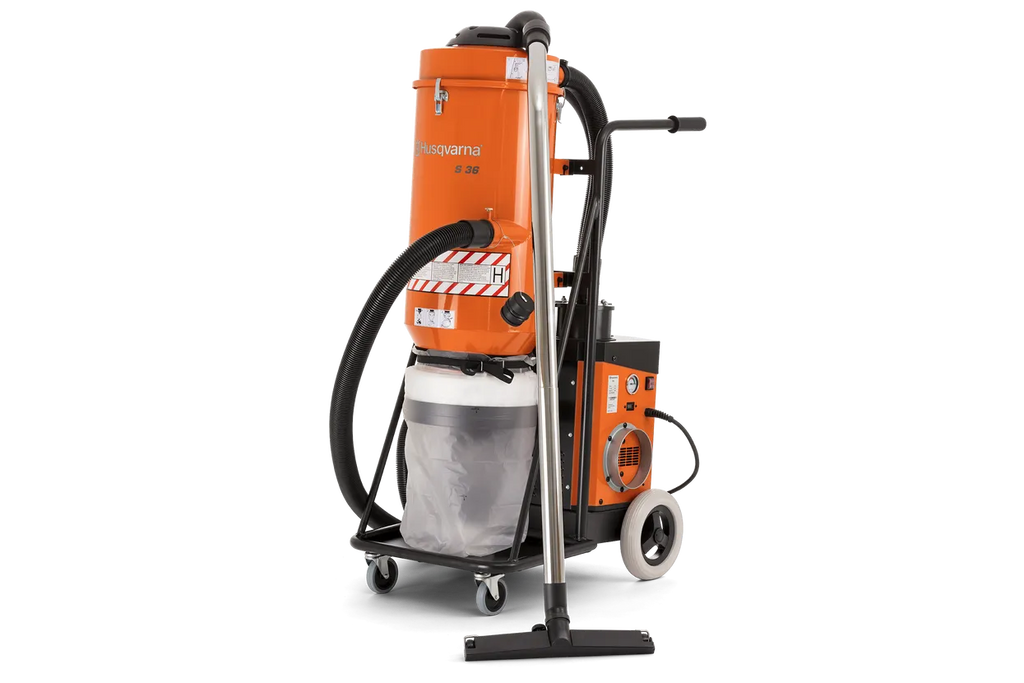

The S 36 Epoxy HEPA Dust Extractor is a robust and efficient solution for epoxy projects. It is specifically designed to match Husqvarna grinding machines and other tools used in epoxy applications. Equipped with three independently tested and certified HEPA H13 filters, this dust extractor ensures superior dust collection, including fine epoxy particles.

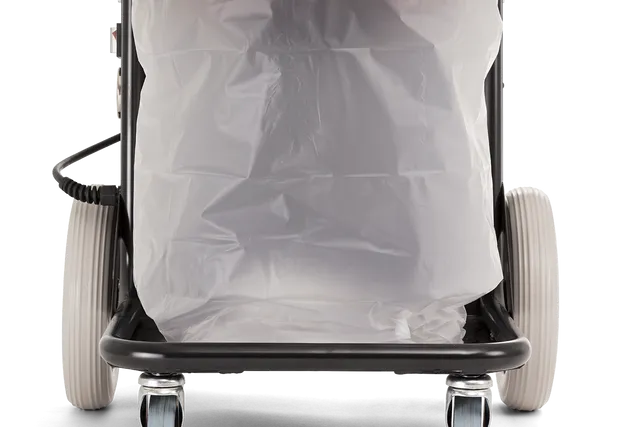

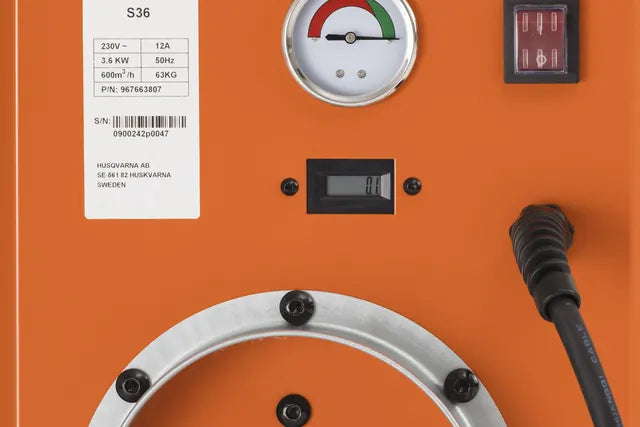

The efficient pre-filter cleaning system, along with the Jet Pulse feature, helps maintain optimal performance and prolongs filter life. With its durable design, easy transportation, and user-friendly features like the hour counter and vacuum meter, the S 36 Epoxy HEPA Dust Extractor is the ideal choice for demanding industrial applications. The non-marking puncture-free wheels provide excellent mobility, while the Longopac® bag hose system enables hassle-free and dust-free bag changes. Keep your work environment clean and safe with the S 36 Epoxy HEPA Dust Extractor.
See more of the best Epoxy Dust and Slurry Equipment
FEATURE OVERVIEW
| Efficient filtration system | Easy and efficient filter cleaning | Durable design |
| Easy to transport | High Efficiency Particulate Air filter | Easy-to-read airflow monitoring |
| Clean and simple bag change | For demanding industrial applications | Control |
TECH DATA TABLE
ALL PRODUCTS SPECIFICATIONS 36 |
S 36 | 120V | 1 PH | NA967 66 38‑01 |
S 36 | 230V | 1 PH | BOX 50A | NA967 66 38‑02 |
S 36 | 230V | 1 PH | BOX 30A | NA967 66 38‑03 |
|---|---|---|---|
| ENGINE | |||
| Power source | Corded | Corded | Corded |
| MOTOR | |||
| Rated input power | 3.2 hp | 4.8 hp | 4.8 hp |
| Phases | 1 ph | 1 ph | 1 ph |
| Voltage | 120 V | 230 V | 230 V |
| Rated current | 20 A | 15.7 A | 18.7 A |
| Max. vacuum | 2.6 psi | 4.06 psi | 4.06 psi |
| SPECIFICATIONS | |||
| Air Flow | 285 cfm | 354 cfm | 353 cfm |
| Air requirement | 285 cfm | 354 cfm | 353 cfm |
| HEPA filters 99.99% at 0.3 microns | 3 | 3 | 3 |
| DIMENSIONS | |||
| Product size length | 32.5 in | 32.5 in | 32.5 in |
| Product size width | 24.5 in | 24.5 in | 24.5 in |
| Product size height | 60″ | 60″ | 60″ |
| Weight | 140 lbs | 140 lbs | 140 lbs |
