Husqvarna PG 510 Planetary Floor Grinder (20 in)

The Husqvarna PG 510 is a 20 inch single-phase planetary grinder with counter-rotation and a sealed grinding head. It is a light, foldable machine for small commercial and residential floors that still delivers an even cut.A 3 to 5.4 hp motor and 145 to 176 pounds of grinding pressure handle prep and polishing, and the Redi-Lock plates hold up to 18 segments for a smooth, controlled finish.

Key performance
20 inGrinding widthMore floor per pass
3-5.4 hp electricPowerNo exhaust indoors
3 × 9 inPlanetary headsEven, flat scratch pattern
145-176 lbGrinding pressureBites into hard concrete
Best forCommercial floors, shops and retail
Runs onSingle phase, 220-240 V, 15 A (3 phase versions)Tell us your power setup when you request a quote.
What it does
Surface prep for coatings
Coating and glue removal
Polishing
Leveling
$11,398.00

Manufacturer's Suggested Retail Price. Equipment is sold by quote.

Request a quote

Authorized dealer. Talk to your Latux rep for your best price, freight, and lead time.

Prefer to talk now? (800) 413-1427

Pairs with
Husqvarna DE 120 H HEPA Dust Extractor (120V)Sold by quote Husqvarna DE 130 H HEPA Dust Extractor (120V)Sold by quote
  • Authorized dealer
  • Parts and service
  • Freight quoted to your site
  • Tech support Mon-Fri
  • Operator walkthrough included
  • Financing available
  • Ask about a demo
At a glance

Husqvarna PG 510 Planetary Floor Grinder (20 in)

The Husqvarna PG 510 is a 20 inch planetary floor grinder, a light, foldable single-phase machine with counter-rotating discs for a stable, even cut. It suits small commercial and residential floors that still need production-grade prep and polishing.

20"
GRINDING WIDTH
Even, stable cut
5.4
HP MOTOR
Single-phase power
176
LB PRESSURE
Prep and polish
293
LB WEIGHT
Light, foldable
What makes it work

Built for small commercial and residential

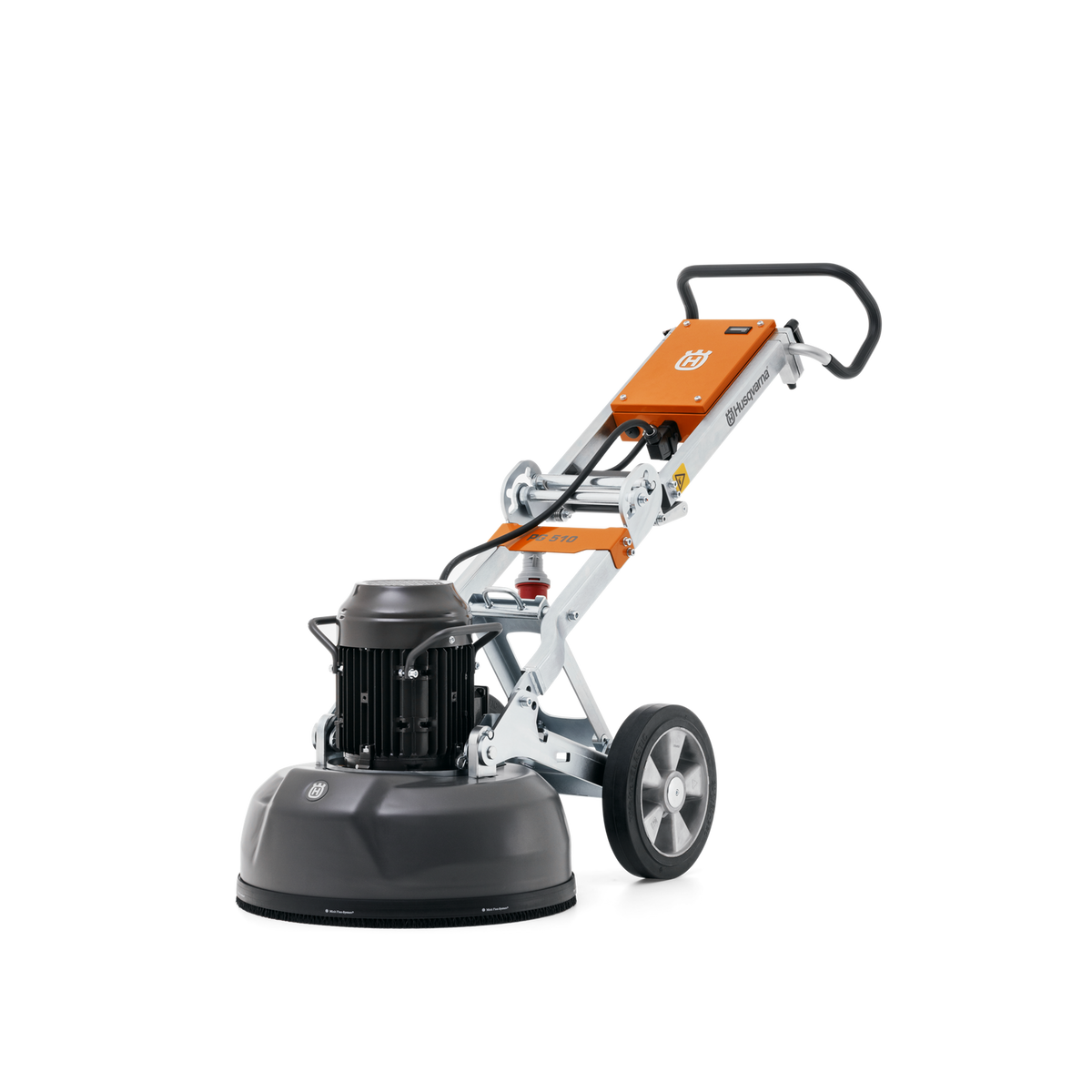

Husqvarna PG 510 planetary floor grinder, front three-quarter view
Counter-rotating discs
Counter-rotation gives a more stable, even cut and better control on the surface.
Standard single-phase power
Runs on 220 to 240 V single phase at 15 A, with three-phase variants available.
Light and foldable
At 265 to 293 pounds it is easy to move and folds down for transport.
Sealed grinding head
A sealed head with 18-segment capacity keeps an even cut on small commercial and residential floors.
MOTOR
Motor 3 to 5.4 hp (2.2 to 4 kW)
Power 220 to 240 V, single phase, 15 A (three-phase variants available)
Head speed 438 rpm (single phase)
GRINDING
Grinding width 20 in (515 mm)
Heads 3 planetary, 9 in (230 mm) each, 18-segment capacity, counter-rotation
Grinding pressure 145 to 176 lb
Recommended extractor 285 CFM airflow
Tooling Husqvarna Redi-Lock
DIMENSIONS
Weight 265 to 293 lb
Job-ready

Complete your setup.

What this machine works with on the job. Add tooling to your cart or get a quote on matching equipment.

Works with

Pairs with a Husqvarna DE 120 H or DE 130 H HEPA extractor and Latux Redi-Lock tooling. Match the grinder to an extractor near the recommended 285 CFM to keep dust contained on every pass.

Shop the setup

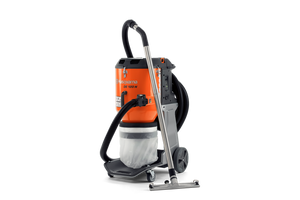

Husqvarna DE 120 H HEPA Dust Extractor 120V
Husqvarna DE 120 H HEPA Dust Extractor (120V)
$3,978.00Quote

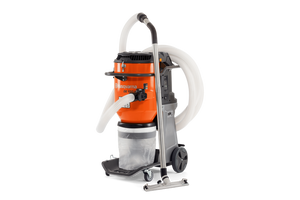

Husqvarna DE 130 H HEPA Dust Extractor 120V
Husqvarna DE 130 H HEPA Dust Extractor (120V)
$6,721.00Quote
Turbo Supreme diamond cup wheel, grinding face showing the turbo segment pattern and cooling holes
Turbo Supreme Diamond Cup Wheel for Concrete Prep (5 in. and 7 in.)
$89.99
Latux nitrile 5 mil black industrial gloves, 100 pack, chemical and epoxy resistant
Latux Nitrile 5 Mil Black Industrial Gloves
$14.99
What is counter-rotation good for?

A more stable, even cut and better control on the surface.

Will it run on shop power?

Yes, on single-phase 220 to 240 V at 15 A, with three-phase variants available.

What extractor airflow does it need?

About 285 CFM. A Husqvarna DE 120 H or DE 130 H HEPA extractor is a good match.

What tooling does it take?

Husqvarna Redi-Lock plates with 18-segment capacity, and Latux Redi-Lock tooling.

How do I buy it, and what about freight?

The PG 510 is sold by quote. Call or message your Latux rep for current price, freight, and lead time. The MSRP shown is for reference.
