Size
7 inches
Profile
ICRI CSP 2 to 3
Type
Turbo Supreme Diamond Cup Wheel

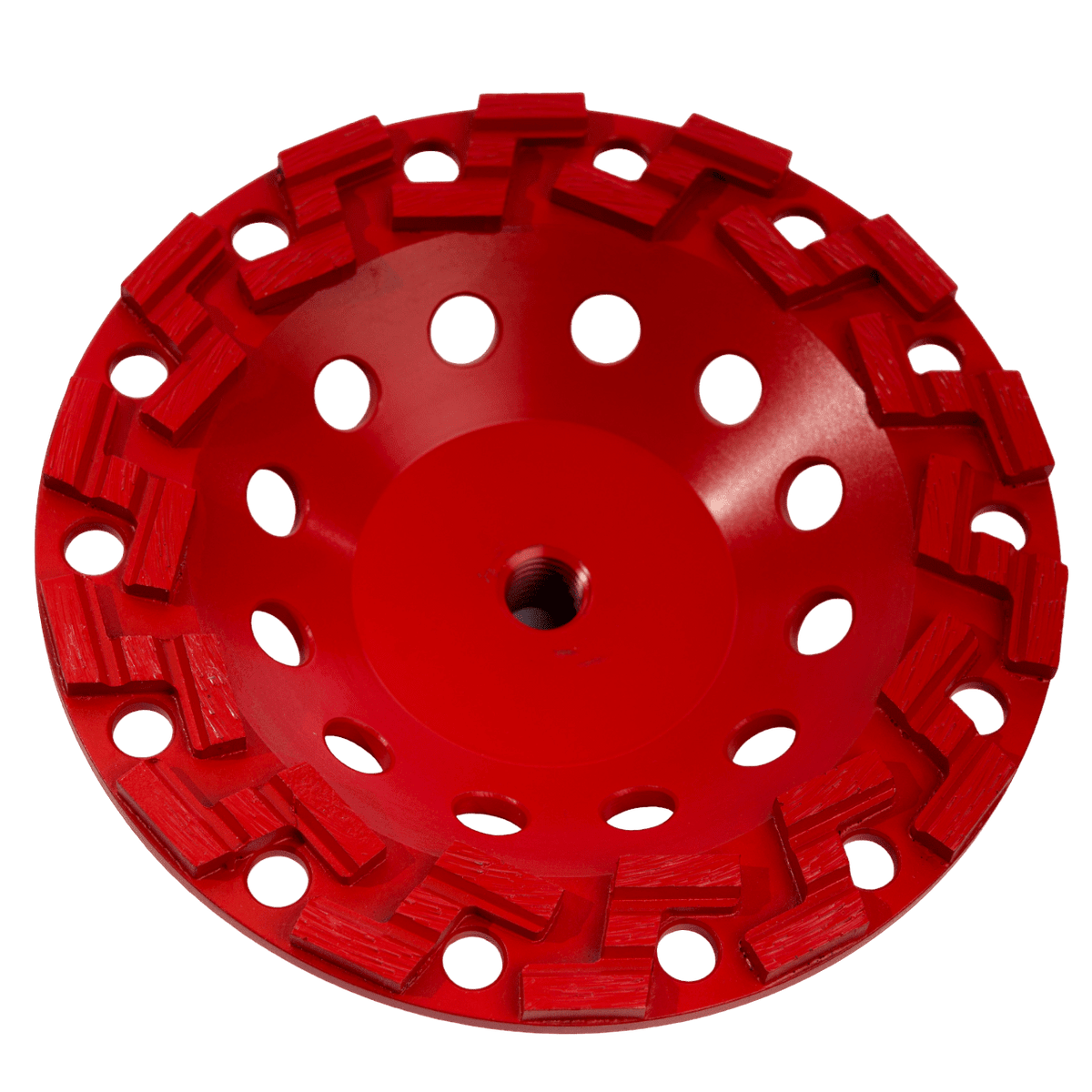

7 in. Turbo Supreme Diamond Cup Wheel, LAT07CSS16-1S (7 X 5-8-11 UNC, 14 SEGS, 16-18 grit)
$89.99
REQUEST A QUOTE
Talk to your Latux rep for your best price, freight, and lead time.
The 7-inch Turbo Supreme diamond cup wheel opens concrete to the ICRI CSP 2 to 3 profile that Everflow epoxy and polyaspartic coatings need for a proper bond. It fits standard 7-inch angle grinders and is the concrete surface prep tool that anchors a coating to the slab instead of letting it sit on top.
7
INCH
Fits standard angle grinders
14
SEGMENTS
Turbo Supreme geometry
2-3
ICRI CSP
Coating-ready profile
16-18
GRIT
Aggressive removal
The right profile for a coating that stays down
Opens concrete to CSP 2 to 3
Creates the surface roughness needed for mechanical adhesion on all Everflow epoxy and polyaspartic systems.
Aggressive turbo segment
The turbo geometry removes concrete efficiently, stripping surface laitance, curing compounds, and existing sealers in one pass.
Fits standard 7-inch grinders
Runs on the standard 7-inch angle grinders used on professional floor prep, so there is no dedicated machine to buy.
Prevents adhesion failures
Most epoxy failures trace back to inadequate prep. The correct profile removes the leading cause of epoxy delamination callbacks.
Technical specifications
| TOOL | |
| Type | Turbo Supreme diamond cup wheel |
| Model | LAT07CSS16-1S |
| Diameter | 7 inches |
| Segments | 14 |
| Arbor | 7 X 5-8-11 UNC |
| Grit | 16 to 18 |
| PREP AND FIT | |
| Profile achieved | ICRI CSP 2 to 3 |
| Compatible equipment | Standard 7-inch angle grinders |
| Use | Surface prep for epoxy, polyaspartic, and moisture vapor barrier coatings |
Works with
Required prep for Everflow coatings, including EF-100, EF-150, EF-155, EF-160, and the full epoxy and polyaspartic line. Grind the slab to ICRI CSP 2 to 3, vacuum the dust, then prime or coat.
Ordering
Ships free in the US. Add to cart. Need a full set or contractor pricing? Message your Latux rep and we will set you up.
Professional diamond grinding tooling, supported by Latux.
Frequently Asked Questions
What bond hardness should I choose?
Bond hardness is the inverse of concrete hardness. Use a soft bond for hard concrete (3500 plus PSI) and a hard bond for soft concrete (under 3000 PSI). The wrong bond drastically reduces tool life.
How long will they last?
Life varies by application. 500 to 2,000 sq ft is typical for aggressive surface-prep segments. Fine polishing pads last longer, and proper water cooling extends life.
What is the difference between segment heights?
Higher segment height means more material removal and longer life. Lower segment height gives a finer finish profile. Choose based on how aggressive the prep needs to be.
