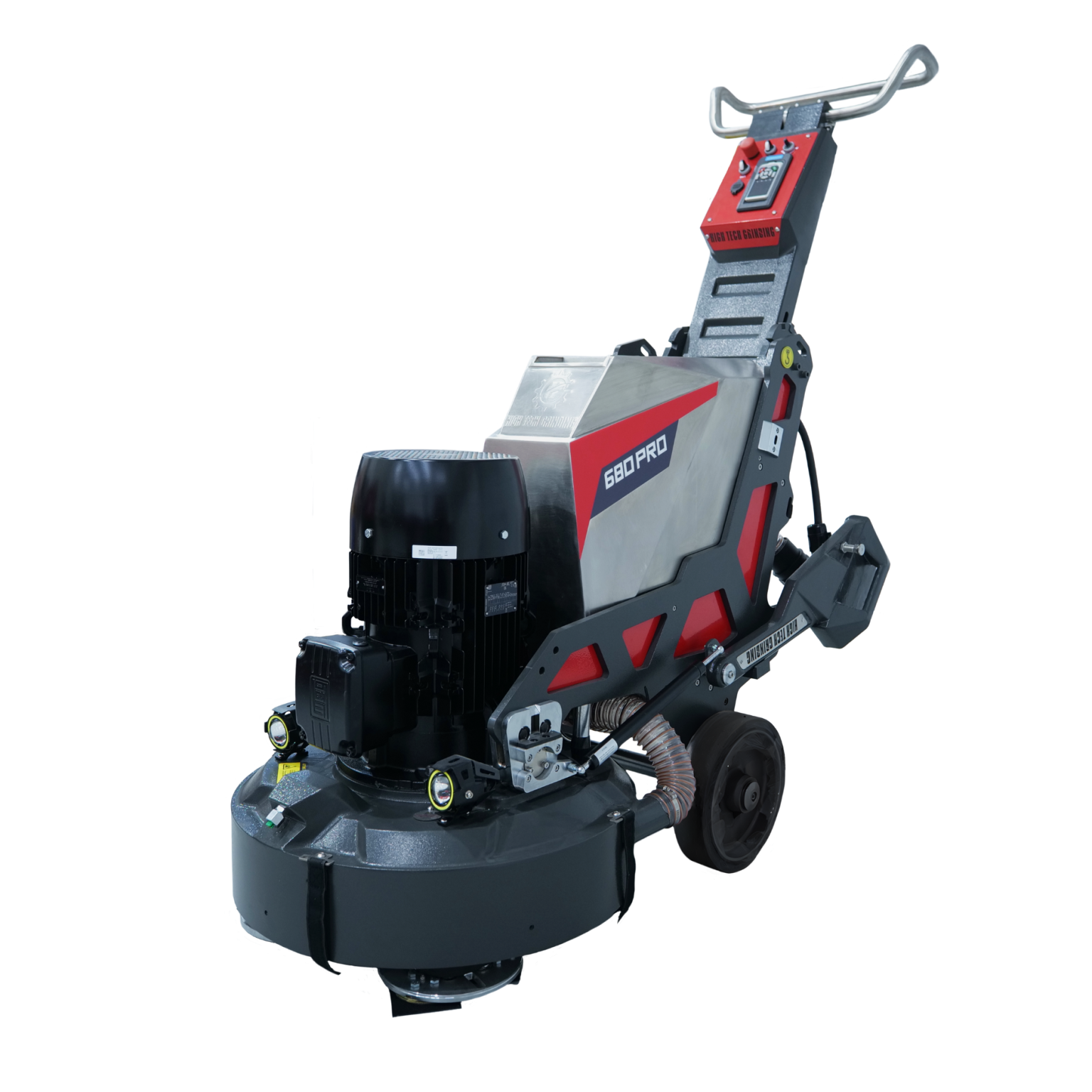

HTG · in)HTG-680 SP self-propelled planetary floor grinder, front three-quarter view

At a glance

SKU
HTG-680-SP
Vendor
HTG
Grinding width
27 in
Motor
11 kW (15 hp)
Grinding pressure
505 to 683 lb
WarrantyCovered by the manufacturer warranty. Latux stocks parts and provides technical support for every machine we sell.
Technical helpParts, service and warranty claims through your Latux rep. Mon to Fri, 8 to 5 EST.Contact a pro
HTG · Floor Grinders
Email Facebook Pinterest WhatsApp

HTG-680 SP Self-Propelled Planetary Floor Grinder (27 in)

The HTG-680 SP is a 27 inch self-propelled planetary grinder with a battery transport system. It covers ground on mid-size commercial floors and drives itself on and off the trailer, wet or dry.A 15 hp motor runs at a motor speed of 350 to 1,680 rpm with 505 to 683 pounds of pressure, and magnetic quick-change plates swap trapezoid segments fast between grinding and polishing steps.

Key performance
27 inGrinding widthMore floor per pass
15 hp electricPowerNo exhaust indoors
3 × 9 inPlanetary headsEven, flat scratch pattern
505-683 lbGrinding pressureBites into hard concrete
Best forCommercial floors, shops and retail
Runs onSingle or 3 phase, 240 VTell us your power setup when you request a quote.
What it does
Surface prep for coatings
Coating and glue removal
Polishing
Leveling
$13,950.00

Manufacturer's Suggested Retail Price. Equipment is sold by quote.

Request a quote

Authorized dealer. Talk to your Latux rep for your best price, freight, and lead time.

Prefer to talk now? (800) 413-1427

  • Authorized dealer
  • Parts and service
  • Freight quoted to your site
  • Tech support Mon-Fri
  • Operator walkthrough included
  • Financing available
  • Ask about a demo
At a glance

HTG-680 SP Self-Propelled Planetary Floor Grinder (27 in)

The HTG-680 SP is a 27 inch self-propelled planetary floor grinder, a 15 hp electric floor grinder with a battery transport drive that moves itself on and off the trailer and across the slab, wet or dry. It is made for crews running mid-size commercial concrete prep and polishing.

27"
GRINDING WIDTH
Mid-size coverage
15
HP MOTOR
1 or 3 phase, 240 V
683
LB PRESSURE
Real production cut
1162
LB WEIGHT
Self-propelled deck
What makes it work

Built for mid-size commercial floors

HTG-680 SP Self-Propelled Planetary Floor Grinder 27 in
Self-propelled drive
A battery transport system drives the machine on and off the trailer and across the slab, wet or dry, sparing the operator.
Single or three phase
Runs on 3 phase 240 V or single phase 240 V, so it fits the power you have on site.
Wide speed range
A motor speed of 350 to 1,680 rpm covers aggressive grinding through polishing.
Fast tooling changes
Magnetic quick-change plates swap trapezoid segments in seconds between grinding and polishing steps.
MOTOR
Motor 11 kW (15 hp)
Power 3 phase 240 V or single phase 240 V
Motor speed 350 to 1,680 rpm
GRINDING
Grinding width 27 in
Heads 3 planetary, 9 in (230 mm) each
Grinding pressure 505 to 683 lb
Drive Self-propelled with battery transport
Water tank 15 L
Tooling Magnetic quick-change plates, trapezoid segments
DIMENSIONS
Weight 1,162 lb
Job-ready

Complete your setup.

What this machine works with on the job. Add tooling to your cart or get a quote on matching equipment.

Works with

Pairs with an HTG IVC-45L dust collector and Latux trapezoid tooling. Run the grinder, a matched HTG vacuum, and the right trapezoid segments as one low-dust production system.

Shop the setup

Turbo Supreme diamond cup wheel, grinding face showing the turbo segment pattern and cooling holes
Turbo Supreme Diamond Cup Wheel for Concrete Prep (5 in. and 7 in.)
$89.99
HTG IVC-V3 HEPA Dust Collector 110V
HTG IVC-V3 HEPA Dust Collector (110V)
$3,299.00Quote
Latux nitrile 5 mil black industrial gloves, 100 pack, chemical and epoxy resistant
Latux Nitrile 5 Mil Black Industrial Gloves
$14.99
What does self-propelled buy me?

Less operator fatigue and easy loading, since the machine drives itself on and off the trailer and across the slab.

Single or three phase?

Either, at 240 V, so it fits the power you have on site.

How much grinding pressure does it apply?

505 to 683 pounds with motor speed 350 to 1,680 rpm, tuned from aggressive removal to a polish.

What dust collector should I pair with it?

An HTG IVC-45L dust collector, plus Latux trapezoid tooling on the magnetic plates.

How do I buy it, and what about freight?

The HTG-680 SP is sold by quote. Call or message your Latux rep for current price, freight, and lead time. The MSRP shown is for reference.
