Lavina · Grinder
At a glance
- SKU
- L20GS7
- Vendor
- Lavina
- Grinding width
- 20 in (510 mm)
- Engine
- 18 hp propane Kawasaki
- Grinding pressure
- 286 to 363 lb
WarrantyCovered by the manufacturer warranty. Latux stocks parts and provides technical support for every machine we sell.
Technical helpParts, service and warranty claims through your Latux rep. Mon to Fri, 8 to 5 EST.Contact a pro
Lavina · Floor Grinders

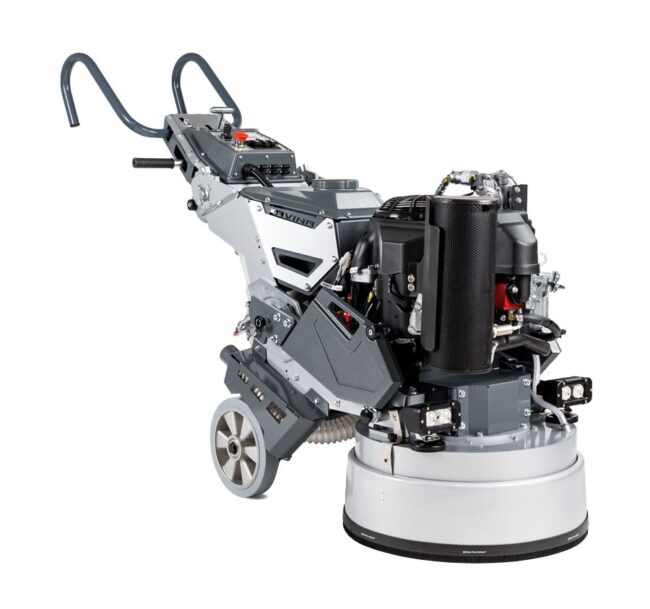

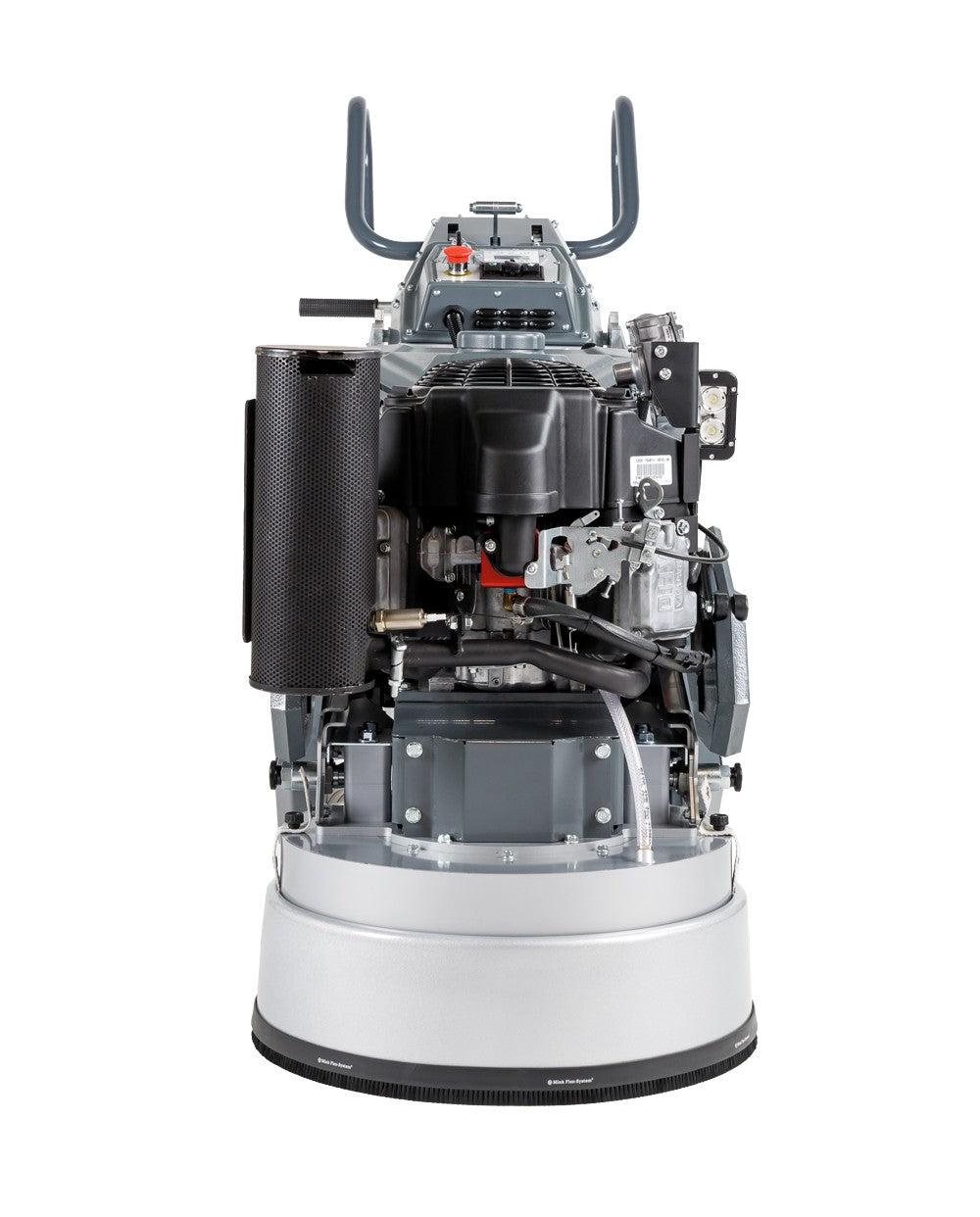

Lavina 20G S7 Propane Planetary Floor Grinder
The Lavina 20G S7 is a cord-free 20 inch planetary grinder built for jobs with no power on site. Its propane Kawasaki engine and sealed, dust-proof three-head drive let you grind hard from the first slab to the last with no generator and no trailing cord.Four weight positions dial grinding pressure from 286 to 363 pounds, and Lavina quick-change plates swap tooling in seconds, so the same machine handles aggressive...
Key performance
20 inGrinding widthMore floor per pass
18 hp propanePowerRuns off-grid
3 × 9 inPlanetary headsEven, flat scratch pattern
286-363 lbGrinding pressureBites into hard concrete
Best forCommercial floors, shops and retail
Runs onPropane. No outlet or generator needed.
What it does
Surface prep for coatings
Coating and glue removal
Polishing
Leveling
$18,990.00
Manufacturer's Suggested Retail Price. Equipment is sold by quote.
Title Request a Quote
Request a quote
Authorized dealer. Talk to your Latux rep for your best price, freight, and lead time.
Prefer to talk now? (800) 413-1427
Request a quote
Lavina 20G S7 Propane Planetary Floor Grinder
A Latux rep will send your price, freight, and lead time.
Prefer to talk now? (800) 413-1427
- Authorized dealer
- Parts and service
- Freight quoted to your site
- Tech support Mon-Fri
- Operator walkthrough included
- Financing available
- Ask about a demo
At a glance
Lavina 20G S7 Propane Planetary Floor Grinder
The Lavina 20G S7 is a cord-free 20 inch planetary floor grinder, an 18 hp propane floor grinder that runs off-grid with no generator and no trailing cord. It is built for contractors prepping and polishing outdoor pads, remote slabs, and interiors where shore power is not available.
20"
GRINDING WIDTH
Full planetary pass
18
HP PROPANE
Kawasaki, off-grid power
363
LB PRESSURE
Down to the aggregate
573
LB WEIGHT
Sealed planetary drive
What makes it work
Built for off-grid slabs
Cord-free propane power
A propane Kawasaki FS481V engine runs the machine with no shore power and no generator, so outdoor and remote slabs are fair game.
Sealed planetary drive
The dust-proof three-head planetary drive keeps grit out of the bearings, so the machine holds output through long production days.
Adjustable down pressure
Four weight positions set 286 to 363 lb of grinding pressure, so you match the cut to coating removal or a polishing pass.
Fast tooling changes
Lavina quick-change plates swap segments in seconds and keep the crew moving between grinding and polishing steps.
MOTOR
| Engine | Propane Kawasaki FS481V, 603 cc, 18 hp (13 kW) |
| Engine speed | 2000 to 3600 rpm |
| Head speed | 400 to 1100 rpm |
GRINDING
| Grinding width | 20 in (510 mm) |
| Heads | 3 planetary, 9 in (225 mm) each, left rotation |
| Grinding pressure | 286 to 363 lb, four weight positions |
| Dust port | 2 in (50 mm) |
| Water | 2.1 gal gravity feed |
| Tooling | Lavina quick-change plates |
DIMENSIONS
| Weight | 573 lb (260 kg) |
Job-ready
Complete your setup.
What this machine works with on the job. Add tooling to your cart or get a quote on matching equipment.
Works with
Runs as a system with a Lavina propane dust extractor in the V20GE or V25GE class, which keeps silica out of the air while you grind. The quick-change plates carry Latux metal-bond and PCD tooling, so one machine can go from aggressive coating removal to a polished finish.
Shop the setup
Does it need electrical power?
No. The 20G S7 runs on a propane Kawasaki FS481V engine, so it works on outdoor and remote slabs with no shore power and no generator.
How much grinding pressure does it apply?
Four weight positions set 286 to 363 pounds of down pressure, so you can run light for polishing or heavy for coating and glue removal.
What dust extractor should I pair with it?
A Lavina propane dust extractor in the V20GE or V25GE class keeps up with the 20 inch head and captures the silica this machine produces.
What tooling does it take?
Lavina quick-change plates. Latux stocks matching metal-bond and PCD segments for every step from grinding to polishing.
How do I buy it, and what about freight?
The 20G S7 is sold by quote. Call or message your Latux rep and we confirm current price, freight to your site, and lead time. The MSRP shown is for reference.
